يصنع هذا القطاع فى عدة دول مصر والاردن وليبيا

مواصفات القطاع: أ‌- سماكة القطاع (40)مم.

ب‌- الزجاج المتاح للأستخدام من 6 ملى الى 10 ملى وزجاج مزدوج.

ت‌- طريقة دهان القطاع كهروستاتيك باودر (الوان) .

ث‌- بدون الوان inodizing . ج‌- الاكسسوارات المستخدم ايطالية المنشاء.

ح‌- متوفر القطاع بنوع سحاب ومفصلى حسب الاحتياج والطلب.

بلد الصنع ليبيا وتركيا ومصر و المملكة الاردنية

مواصفات القطاع:

خ‌- سماكة القطاع (48)مم.

د‌- الزجاج المتاح للأستخدام من 6 ملى الى 10 ملى وزجاج مزدوج.

ذ‌- طريقة دهان القطاع كهروستاتيك باودر (الوان) .

ر‌- بدون الوان inodizing حسب اللون المطلوب.

ز‌- الاكسسوارات المستخدمة ايطالية المنشاء.

س‌- متوفر القطاع بنوع مفصلى حسب الاحتياج والطلب.

Strong points of EKU Perfektion Strutturale

external all-glass appearance, great light transmittance

high-performance thermal and sound insulation

slim structure, easy to install

uncluttered vision towards the outside

innovative patented accessories

high resistance, minimum maintenance

vast assortment of colours and finishes

Strong points of EKU Perfektion Strutturale:

external all-glass appearance, great light transmittance

high-performance thermal and sound insulation

slim structure, easy to install

uncluttered vision towards the outside

innovative patented accessories

high resistance, minimum maintenance

vast assortment of colours and finishes

Performance of Eku 66 TT High Performance

A sample casement consisting in a 1230×1480 mm single pane window, with insulated glazing having U_g = 1.0 W/m²K and Psi = 0.05 W/mK provides a thermal transmittance value U_w of 1.27 W/m²K.

A sample casement consisting in a 1535×1480 mm double pane window, with insulated glazing having U_g = 1.0 W/m²K and Psi = 0.05 W/mK provides a thermal transmittance value U_w of 1.35 W/m²K.

Sound reduction R_w = 45 dB.

Air permeability: Class 4.

Water tightness: Class E1500.

Wind load resistance: Class C5.

Strong points of Eku 66 TT High Performance

Exceptional heat insulation and excellent energy efficiency.
The lowest profile thermal transmittance values (U_f) of its category. Low-emissivity insulated glazing with two or three glass panes.

High resistance, maximum security.
A window system that fully meets sound reduction, weather performance and intruder resistance requirements.

Thinner profiles for larger glazing surfaces.
(Starting from 48 mm) results in larger glazing surface and greater natural light penetration..

Performance of Eku Perfektion Light

Strong points of Eku Perfektion Light

Clean and essential lines that result in an essential style of great aesthetic impact.

All-glass internal pane. Highly luminous interiors.

Highly performing in terms of heat and sound insulation.

Easy to assemble streamlined structure.

Room micro-ventilation without compromising security.

High durability, minimum maintenance.

Vast assortment of colours and finishes. Choice of handle and of internal glass pane serigraphy.

Advantages EKU VERANDA

Improved heat and sound insulation.

Extremely large walls can be opened with maximum luminosity

High resistance and minimum maintenance.

Great flexibility with maximum elegance.

With the vast range of profiles, shapes and finishes, all kinds of solution are possible.

Combinations possible with Eku Woodart TT Thermoplus 98

With this line it is possible to create thermal break aluminum/wood doors and windows with one or more panes and with various types of structure opening and movement solutions: fixed, casement, hopper, tilt and turn, awning, horizontal or vertical pivot, parallel sliding.

Strong points of Eku Woodart TT Thermoplus 98

Excellent heat insulation performance with heat transmittance values (U_w) compliant with Passivhaus construction standards.

Good sound reduction.

The elegance of wood combined with the strength of aluminum.

High resistance and minimal maintenance.

Great assortment of profiles, shapes and finishes for creating any kind of solution.

Download the brochure

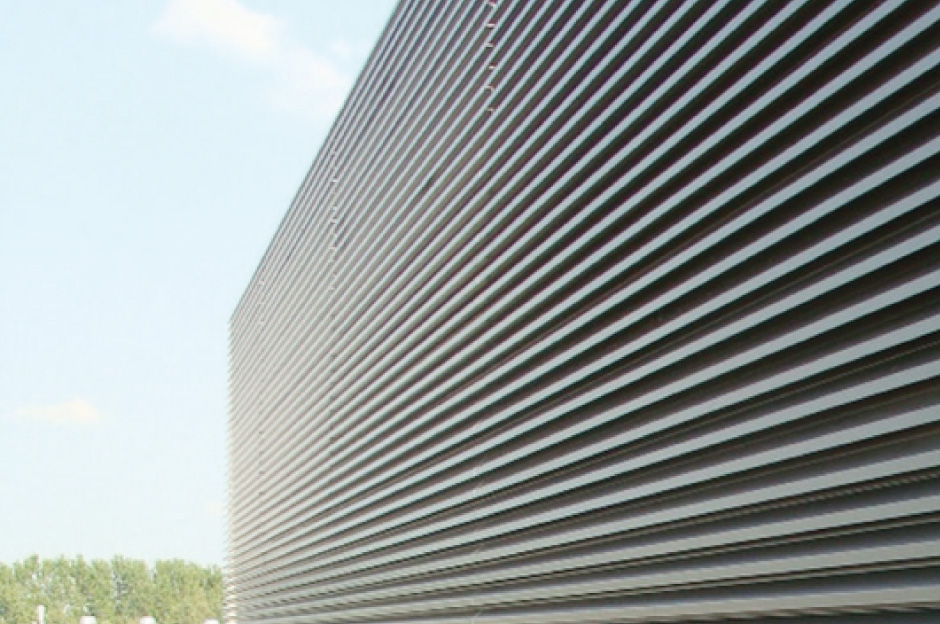

EKU GRID: geometric patterns for facades

EKU GRID is a system of aluminium facade sun screens, for structural and visual lightening of the facade’s architectural impact. The grids, made of slanting slats of 30 or 80 mm, or 30 mm square, enable the creation of unusual aesthetic effects when alternated with panels of various materials (like Alucobond, glass etc.)

So EKU GRID is a brilliant solution for new builds or for renovating existing facades. It is easy to apply and resistant to weather and temperature differences, but above all, is architecturally and aesthetically very versatile, thanks to the wide range of colours available.

Advantages of EKU GRID

• Protection of the masonry structure from direct effects of weather.
• Improved heat insulation.
• Easy to install.
• Gives character to the facade.

Advantages EKU FV – ventilated facades

Protection of the masonry structure from direct effects of weather.

Improved thermo-acoustic insulation and more wellbeing in the home.

Movement of air in the cavity helps dry any dampness and remove heat accumulated

from the sun’s rays in the cladding.

The ventilated panels can be made of various materials, thus enabling the designer to obtain special aesthetic results.

Easy to install.

EKU 50 GLASS: elegance and new styles for curtain walls

Today’s building envelopes require careful technical design, but without ignoring the aesthetic aspect. With this knowledge, the Technical Department of the Profilati Group developed EKU 50 GLASS for mullion and transom curtain walls.

Simplicity, versatility, performance and architectural elegance are the words that best describe this system. EKU 50 GLASS was conceived for maximum simplicity in creating various types of facade, with the help of specially conceived hardware. So not only vertical facades, but also sloping ones, roofs, cupolas, pyramids, tunnels and polygons. Every solution will be marked by great elegance, lightness and minimum visual clutter.

External coverings with various shapes (flat, arched etc.) give the facade a touch of personality.

Lastly, the EKU 50 GLASS series has demonstrated excellent sound (44 dB) and heat insulating properties: profile heat transfer U_f = 1,4 ÷ 2,56 W/m²K.

Technical data of EKU 50 GLASS

• Basic dimensions: internal and external visible section of 50 mm.
• Maximum thickness of glass: 50 mm.
• Glazing depth: 20 mm.
• Dimensions of warm edge bars: 9-15-21-27-33 mm modular.
• Recess for hardware: dimensioned for special hardware.

Performance of EKU 50 GLASS

• Frame heat transfer U_f = 1,4 ÷ 2,56 W/m²K;
• Sound insulation: 44 dB;
• Airtightness: Classe A4;
• Watertightness: Classe R7;
• Wind resistance: 1500 N/m² (safety 2250 N/m²).

Performance of EKU 50 GLASS

• Architectural elegance.
• Transparency and lightness.
• Heat and sound comfort.

Depliant PDF

EKU GREEN louvre shutters: more beautiful, safer and more long-lasting

The shutters from the new series EKU GREEN, with patented hardware, are ideal for new builds and renovations and are designed with 6 big advantages:

1. Harmonious and pure lines.

Clean, elegant lines blend perfectly with any kind of building. Their innovative design uses aluminium for structural profiles, as well as for supporting mechanisms and louvre orientation, thereby eliminating visible plastic elements typical of traditional louvre shutters.

2. Customised finishes.

The metal components of new EKU GREEN can be supplied in the same colour as the profiles. This gives versatility in matching the colour of handles, hinges and even the inside edges of the surface finish of the structure, guaranteeing maximum elegance and homogeneity to the finished product.

3. More functional and longer lasting.

The great mechanical strength of aluminium profiles and their perfect surface finish guarantee high security and practically no further maintenance required. Also, the choice of metal, not plastic, for the support mechanisms and louvre orientation ensures effective weather resistance and better functionality.

4. More secure against break-ins.

By using metal hardware, EKU GREEN guarantees higher anti-burglary security standards compared with tradition systems using plastic hardware.

5. Can accommodate security bars.

In response to increased security requirements, the slats and hardware of EKU GREEN are pre-prepared to accommodate steel reinforcements for security and high anti-burglary performance.

6. Ergonomics and light

The new slat-orientation mechanism has been designed for comfortable, easy and silent daily opening and closing. A small, ergonomic knob can be turned for easy adjustment of the amount of light and fresh air admitted to the room.

The EKU GREEN series comprises aluminium profiles that can be used for various types of external louvre shutters:

the classic louvre shutter with frame;

• the Genoa or Florence style louvre shutter;
• classic louvre shutter with wall hinges;
• sliding louvre shutter.

PDF Depliant

Performance of Eku Perfektion Slide

• A 2 pane sliding element, 3,000×2,500 mm, with exposed frame, insulated glazing with U_g = 0.6 W/m²K, Psi = 0.05 W/mK provides a thermal transmittance value U_w of 1.12 W/m²K.
• A 2 pane sliding element, 3,000×2,500 mm, with recessed frame, insulated glazing with U_g = 0.6 W/m²K, Psi = 0.05 W/mK provides a thermal transmittance value U_w of 1.12 W/m²K.
• Air permeability: Class 4.
• Water tightness: Class 8A.
• Wind load resistance: Class C4.

Strong points of Eku Perfektion Slide

• Elegant and essential design obtained by reducing the exposed profile to a minimum.
• High-performance thermal and light transmittance.
• Allows to obtain very large lights with very heavy panels while keeping them easy to move.
• Very easy to construct and install.
• The frames and panels can be completely recessed into the walls and floor.
• High resistance, minimum maintenance.
• Vast assortment of colours and finishes.

Download the brochure in pdf

Performance of EKU 170 AS TT

• Window heat transfer Uw = 1,51 W/m2K (one panel system mm 2500x2200h, Ug = 0.6 W/m2K and warm edge);
• Noise reduction: 38÷41 dB (depending on double glazing used);
• Airtightness: Class 4;
• Watertightness: Class E 900;
• Wind resistance: Class C5.

Advantages of EKU 170 AS TT

• No space taken up by doors or windows.
• Great thermal insulation ensured by warm edge bars.
• Good sound insulation.
• Refined design to satisfy all aesthetic requirements.
• High resistance and minimum maintenance.
• Possibility of constructing large-sized doors and windows with maximum luminosity.
• With the vast range of profiles, shapes and finishes, all kinds of solution are possible.

Performance of EKU 100 SLIDE TT

Profile heat transfer  Uf = 2,74 W/m2K ÷ 3,49 W/m2K;

Sound insulation: 39 dB;

Airtightness: Class 4;

Watertightness: Class E 900;

Wind resistance: Class B3.

Advantages of EKU 100 SLIDE TT

High thermal insulation with among the lowest profile heat transfer (Uf) values in its category.

Excellent airtight and waterproof qualities.

Possibility of constructing large-sized doors and windows with maximum luminosity.

High resistance, minimum maintenance.

Vast range of profiles and finishes to meet all building or architectural requirements.

Depliant

Performance of EKU 150 TT S ed EKU TT AS

Advantages of EKU 150 TT S ed EKU TT AS

• No space taken up by doors or windows.
• Good thermal insulation ensured by warm edge bars.
• Refined design to satisfy all aesthetic requirements.
• High resistance and minimum maintenance.
• Possibility of constructing large-sized doors and windows with maximum luminosity.
• With the vast range of profiles, shapes and finishes, all kinds of solution are possible.

Download

Performance of EKU PE 70 SLIDE TT

Profile heat transfer: Uf = 4,43 W/m2K ÷ 5,13 W/m2K;

Noise reduction: 39 dB;

Airtightness: Class 2;

Watertightness: Class 4A;

Wind resistance: Class B3.

Advantages of EKU PE 70 SLIDE TT

No space taken up by doors or windows.

Good thermal insulation ensured by warm edge bars.

High resistance and minimum maintenance.

Clean lines for refined design.

With the vast range of profiles, shapes and finishes, all kinds of solution are possible.

Advantages of EKU PERFEKTION WOOD

Minimal design obtained by reducing the visible profile to a minimum and using only concealed hardware.

High performance in terms of heat transfer and visible transmittance.

Large-sized doors and windows can be made.

Bright rooms and wide views of the outside.

Innovative patented hardware.

High resistance, minimum maintenance.

Great assortment of colours and finishes.

PDF Depliant

Advantages of EKU PERFEKTION ALU

• Minimal design obtained by reducing the visible profile to a minimum and using only concealed hardware.
• High performance in terms of heat transfer and visible transmittance.
• Large-sized doors and windows can be made.
• Bright rooms and wide views of the outside.
• Innovative patented hardware.
• High resistance, minimum maintenance.
• Great assortment of colours and finishes.

Depliant

EKU PERFEKTION CLASSIC: classic style for a new concept of door and window

This system is part of a range of thermal break doors and windows with minimal, clean design lines. With visible surfaces of profiles reduced to a minimum, EKU Perfektion Classic manages to combine clean lines, lightness and reliability, targeting clients looking for elegant products, without compromising on comfort and functionality.

EKU Perfektion Classic gives character to the style of any room and helps it to achieve optimum energy performance. A larger glazed surface, reduced profile area and the selection of high-performance insulation materials enable this system to guarantee heat transfer (Uw) of 1.36 W/m2K (calculated for a single panel window mm 900x1400h, Ug=0.6 W/m2K, warm edge). This value meets the strictest parameters imposed by energy-saving regulations on building.

So with EKU Perfektion Classic we can count on a pleasant climate for our rooms, which will be bright and proof against the weather and irritating noises. The system can be used for large-sized doors and windows with a big view of the outside, in a vast range of colours and finishes – including steel-effect – to meet all architectural demands.

Advantages of EKU Perfektion Classic

[checklist icon=”check” iconcolor=”#dd3333″ circle=”no”]

Elegant, minimal design obtained by reducing the visible profile to a minimum and using only concealed hardware.

High performance for its heat transfer and visible transmittance.

Large-sized doors and windows can be made.

Bright rooms and wide views of the outside.

Innovative patented hardware.

High resistance and minimum maintenance.

Great assortment of colours and finishes.

Depliant

Available types: EKU WOODART TT

The EKU WOODART TT series can be used for thermal break aluminium-and-wood doors and windows with one or more panels and various kinds of opening and movement: fixed, casement, vasistas, tilt-and-turn, hopper, horizontal or vertical swing, parallel sliding windows.

Performance of EKU WOODART TT

• Profile heat transfer: Uf = 1,4÷1,99 W/m2K;
• Sound insulation: 44 dB;
• Airtightness: Class 4;
• Watertightness: Class E 1050;
• Resistenza al vento: Class C3.

Advantages of EKU WOODART TT

• excellent thermal insulation with among the lowest heat transfer (Uf) values in its category;
• the elegance of wood combined with the practicality of aluminium;
• high resistance and minimum maintenance;
• great assortment of profiles, shapes and finishes to achieve all kinds of solutions.

Advantages of EKU 62 TT and 78 TT

extraordinary thermal insulation with among the lowest heat transfer (Uf) values in its category;

seals made in highly thermo-insulating materials;

suitable for Eurogroove or standard groove 16mm hardware;

high resistance and minimum maintenance;

profile strength for building large doors and windows;

high-load bearing hardware;

vast range of profiles, shapes and finishes to satisfy all aesthetic and construction requirements.

EKU 52 TT and 66 TT: a perfect balance of style, elegance and performance

The EKU 52 TT and 66 TT series for thermal break doors and windows have an enviable harmony of performance, design and price. Carefully designed profiles, high-quality components and thermal breaks with 18mm and 32mm bars respectively enable these systems to guarantee effective and long-lasting heat and noise insulation and protection from the weather.

As well as complying with the strictest energy-saving requirements, EKU 52 TT and 66 TT are extremely robust, so they can be used for large sized doors and windows without risk to safety or functionality. Their sleek, elegant design meets the needs both of new builds and renovations.

The minimal visible surface of the profile, given the same overall area of the door or window, allows for a larger area of glazing, resulting in more transparency and light for the home.

Performance EKU 52 TT e 66 TT

• excellent price-quality ratio;
• high resistance and minimum maintenance;
• profile strength for building large doors and windows;
• seals made in highly thermo-insulating materials;
• high-load bearing hardware;
• suitable for Eurogroove or standard groove 16mm hardware;
• vast range of profiles, shapes and finishes to satisfy all aesthetic and construction requirements.

EKU Woodart aluminium and wood doors and windows – united we… are comfortable

A series for aluminium and wood doors and windows, casement, without thermal break. The charm of wood with the potential of aluminium, an exclusive union of elegance and protection.

EKU Woodart windows combine these two materials to offer that “something extra” in elegance and performance. Outside, the aluminium profile is strong and long-lasting, protecting our rooms against the weather. Inside, a layer of solid wood enhances and brightens up our home with its naturally “warm” elegance.

The wide range of finishes, colours and woods allows these doors and windows to blend harmoniously with any architectural style and in all kinds of décor.

EKU Woodart profiles ensure better heat insulation than equivalent profiles without the wooden finish. Combined with proper double-glazing, for example low-emission, you can respect the heat transfer limits imposed by standards of energy saving in construction, currently in force in Italy.

Advantages of EKU Woodart:

good heat insulation, ensured by their wood cladding, a natural insulator;

excellent performance regarding airtightness, watertightness and resistance to wind load;

good sound insulation;

high resistance and minimum maintenance;

vast range of profiles, shapes, openings and finishes to satisfy all requests for customisation.

EKU 66 TT and EKU 78 TT series for exterior doors: maximum strength and reliability

The EKU 66 TT and EKU 78 TT series for thermal break exterior doors have been designed for creating pedestrian doors opening inwards or outwards with panic bars and flush-fitting on both sides. Thanks to their special hardware, doors from this series can be integrated into building automation.

Designed to meet the strictest energy requirements of current European regulations, both series are ideal for creating large-sized glazing, openable or fixed, along with casement openings from the EKU 66 TT and EKU 78 TT series for thermal break doors and windows. The 78 TT system offers particularly good heat insulation, in response to greater demands for energy saving.

The profile geometry and use of high-quality components ensure that the structure is extremely robust, thus satisfying all requirements for load-bearing.
EKU 66 TT and EKU 78 TT doors blend stylishly into any context and give good protection against the weather.
The systems offer a wide choice of finishes, colours and effects to satisfy all demands for aesthetic personalisation.

Prestazioni EKU 66 TT ed EKU 78 TT

Advantages EKU 66 TT – EKU 78 TT:

extraordinary thermal insulation with among the lowest heat transfer (Uf) values in its category;

seals made in highly thermo-insulating materials;

high resistance and minimum maintenance;

profile strength for building large doors and windows;

high load-bearing hardware;

vast range of profiles, shapes and finishes to satisfy all aesthetic and construction requirements.

Depliant
